| MẠCH NẠP PICKit 3 Edition |
 |
 |
| |

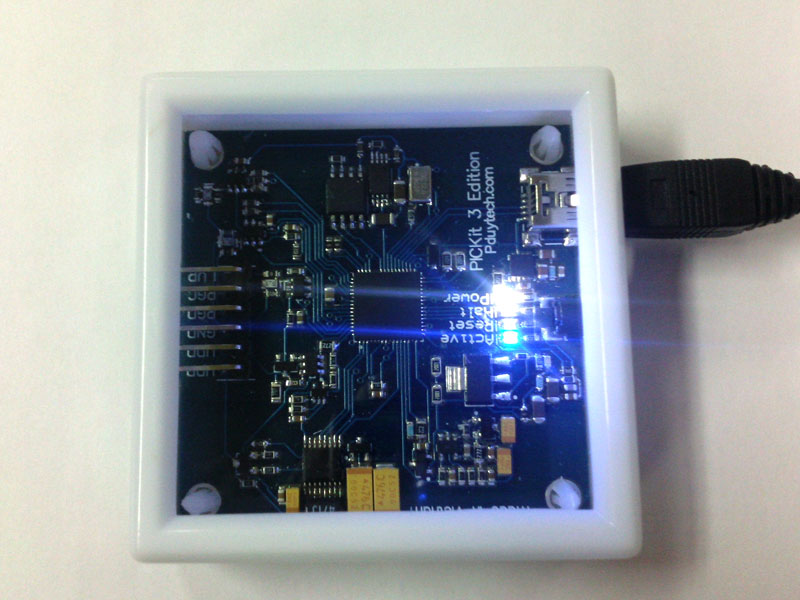

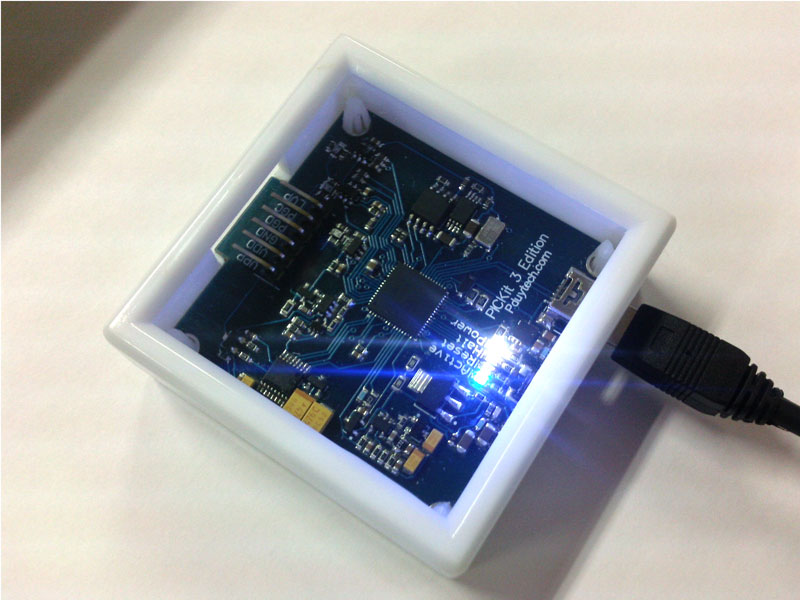

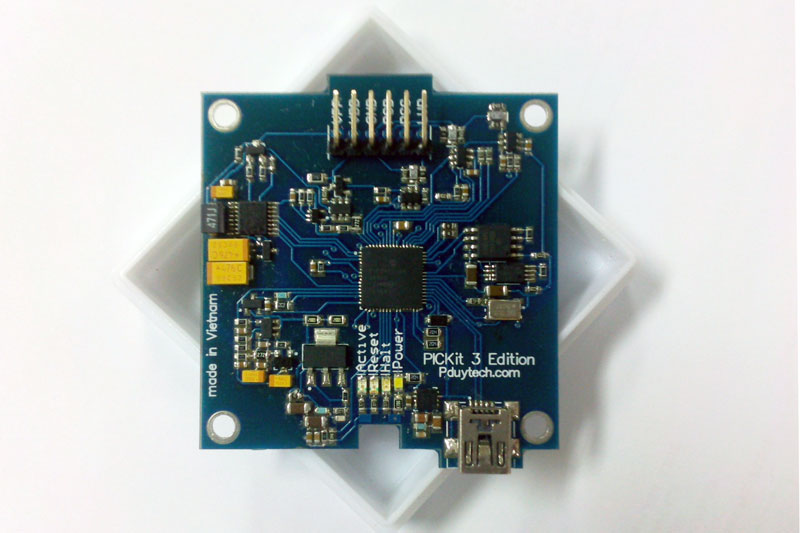

Mạch nạp PICKit 3 Edition đã hoàn chỉnh, việc thử nghiệm được thực hiện trên MPLAB IDE v8.43, Window XP, Window Vista - 32bits và Window 7 Pro - 32bits.
PICKit 3 Edition mới đây được dùng thử trên MPLAB IDE v8.46 và Window 7 Utimate - 64bits.
|
| |
|
Một Số Thử Nghiệm Debug Chip & Chức Năng Program-To-Go |
 |
 |
 |
| Debug PIC18F2550 |
Debug PIC24FJ256GB110 |
Debug PIC32MX460F512L |
| |
 |
|
| |

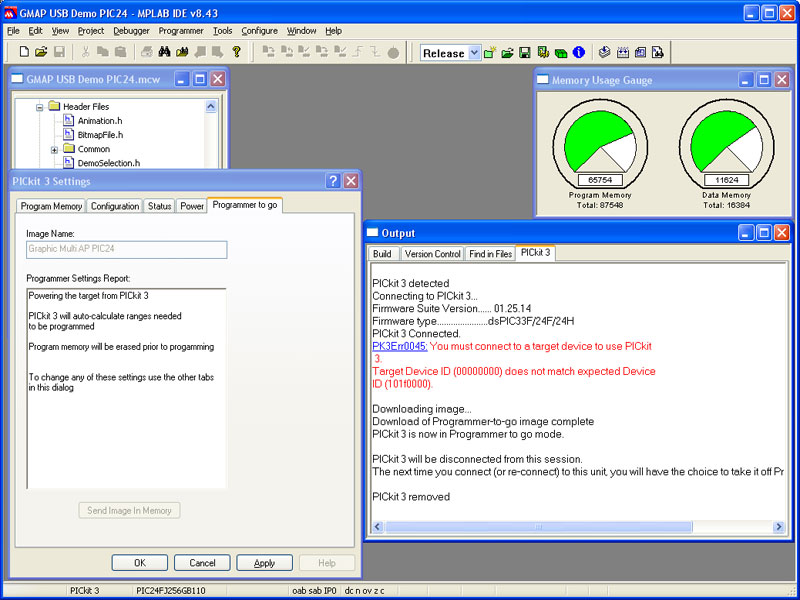

PTG PIC24FJ256GB110 |
|
|
| |
Danh Sách Chip Hỗ Trợ |
| "B" Blue - chip được hỗ trợ, xác nhận bởi người dùng |
| "O" Orange - chip được hỗ trợ, xác nhận bởi Pduytech |
| "G" Green - chip được hỗ trợ, xác nhận bởi Microchip |
| "Y" Yellow - chip được hỗ trợ nhưng chưa được thử nghiệm trực tiếp, xác nhận bởi Microchip |
| "R" Red - chip không được hỗ trợ |
Device
Support
14 - 12 - 2009 |
P
K
3
D |
P
K
3
P |
Notes |
| PIC10F200 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC10F202 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC10F204 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC10F206 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC10F220 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC10F222 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12C508 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12C508A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12F508 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12C509 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12C509A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12CR509A | R | R | G | R | G | R | R | | | R | R | R | R | R | R | G | R | R | R | R |
| PIC12F509 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12F510 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12F519 | R | G | G | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F526 | R | G | G | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC12CE518 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12CE519 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12C671 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12C672 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12CE673 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12CE674 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC12F629 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12F635 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12F675 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12F683 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16C432 | R | R | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C433 | R | R | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C505 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F505 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F506 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16C54 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR54 | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR54A | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C54C | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR54C | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F54 | G | G | G | G | G | R | G | | | R | R | R | R | G | G | G | R | G | R | G |
| PIC16HV540 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C55 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C55A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C554 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C557 | R | R | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C558 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C56 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C56A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR56A | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C57 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C57C | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR57C | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F57 | G | G | G | G | G | R | G | | | R | R | R | R | G | G | G | R | G | R | G |
| PIC16C58A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C58B | R | G | G | G | G | R | R | | | R | R | R | R | R | G | R | R | R | R | R |
| PIC16CR58B | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F59 | G | R | G | G | G | R | G | | | R | R | R | R | G | G | G | R | G | R | G |
| PIC16CR62 | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C62A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C62B | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C620 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C620A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR620A | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C621 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C621A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C622 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C622A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CE623 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CE624 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CE625 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F627 | R | G | G | G | G | R | G | | | R | R | R | R | G | G | G | R | G | R | G |
| PIC16F627A | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F628 | R | G | G | G | G | R | G | | | R | R | R | R | G | G | G | R | G | R | G |
| PIC16F628A | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16C63 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR63 | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C63A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F630 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F636 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F639 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16CR64 | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C64A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C642 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F648A | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16CR65 | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C65A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C65B | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C66 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C662 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C67 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F676 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F631 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F677 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F684 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F685 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F687 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F688 | G | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F689 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F690 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16C71 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C710 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C711 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C712 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C715 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C716 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C717 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C72 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR72 | R | R | G | R | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F716 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F72 | R | G | G | G | G | R | G | | | R | R | R | R | G | G | G | R | G | R | G |
| PIC16C72A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F73 | R | G | G | G | G | R | G | | PCM16XS0(G) | | PCM16XS1(G) | | PCM16XS2(G) |
| | R | R | R | R | G | G | G | R | G | R | G |
| PIC16CR73 | R | R | R | Y | R | R | R | | | R | R | R | R | R | R | G | R | R | R | R |
| PIC16C73A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C73B | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR74 | R | R | R | G | R | R | R | | | R | R | R | R | R | R | G | R | R | R | R |
| PIC16F74 | R | G | G | G | G | R | G | | PCM16XS0(G) | | PCM16XS1(G) | | PCM16XS2(G) |
| | R | R | R | R | G | G | G | R | G | R | G |
| PIC16C74A | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C74B | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C745 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C76 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR76 | R | R | R | Y | R | R | R | | | R | R | R | R | R | R | G | R | R | R | R |
| PIC16F76 | R | G | G | G | G | R | G | | PCM16XS0(G) | | PCM16XS1(G) | | PCM16XS2(G) |
| | R | R | R | R | G | G | G | R | G | R | G |
| PIC16C765 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C77 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR77 | R | R | R | G | R | R | R | | | R | R | R | R | R | R | G | R | R | R | R |
| PIC16F77 | R | G | G | G | G | R | G | | PCM16XS0(G) | | PCM16XS1(G) | | PCM16XS2(G) |
| | R | R | R | R | G | G | G | R | G | R | G |
| PIC16C770 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C771 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C773 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C774 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C781 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C782 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F818 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F819 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16CR83 | R | R | G | Y | G | R | R | | PCM16XH0(G) | | PCM16XH1(G) | | PCM16XH2(G) |
| | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F83 | R | G | G | G | G | R | G | | PCM16XH0(G) | | PCM16XH1(G) | | PCM16XH2(G) |
| | R | R | R | R | G | G | G | R | G | R | G |
| PIC16F720 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F721 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F722 | R | Y | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F722A | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F723 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | R | G |
| PIC16F723A | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F724 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F726 | R | R | Y | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F727 | R | Y | Y | G | G | G | G | | | G | G | R | G | G | G | G | G | G | R | G |
| PIC16F707 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF720 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF721 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF722 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16LF722A | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF723 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16LF723A | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF724 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16LF726 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16LF707 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF727 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F737 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F747 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F767 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F777 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F785 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16HV785 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16CR84 | R | R | G | R | G | R | R | | PCM16XH0(G) | | PCM16XH1(G) | | PCM16XH2(G) |
| | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F84 | R | G | G | G | G | R | G | | PCM16XH0(G) | | PCM16XH1(G) | | PCM16XH2(G) |
| | R | R | R | R | G | G | G | R | G | R | G |
| PIC16F84A | R | G | G | G | G | R | G | | | R | R | R | R | G | G | G | R | G | R | G |
| PIC16F87 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F870 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F871 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F872 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F873 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F873A | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F874 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F874A | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F876 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F876A | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F877 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F877A | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F88 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F882 | R | G | Y | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F883 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F884 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F886 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F887 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | R | G | G | G | G |
| PIC16C923 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C924 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C925 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16C926 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16CR926 | R | R | R | Y | R | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC16F913 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F914 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F916 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F917 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F946 | R | Y | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12F615 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12F617 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC12HV615 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12F752 | R | R | R | R | Y | R | R | | | R | R | R | R | R | R | Y | R | R | R | R |
| PIC12HV752 | R | R | R | R | Y | R | R | | | R | R | R | R | R | R | Y | R | R | R | R |
| PIC12F1822 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC12LF1822 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC12F1840 | R | R | R | Y | Y | Y | Y | | | R | R | R | Y | Y | G | Y | Y | Y | Y | Y |
| PIC12LF1840 | R | R | R | Y | Y | R | R | | | R | R | R | Y | Y | G | Y | Y | Y | Y | Y |
| PIC12F609 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC12HV609 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F610 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16HV610 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F616 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16HV616 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC16F1516 | R | R | R | Y | Y | R | R | | | R | R | R | Y | Y | G | R | Y | Y | Y | Y |
| PIC16LF1516 | R | R | R | Y | Y | R | R | | | R | R | R | Y | Y | G | R | Y | Y | Y | Y |
| PIC16F1517 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | G | R | G | G | G | G |
| PIC16LF1517 | R | R | R | Y | Y | R | R | | | R | R | R | Y | Y | G | R | Y | Y | Y | Y |
| PIC16F1518 | R | R | R | Y | Y | R | R | | | R | R | R | Y | Y | G | R | Y | Y | Y | Y |
| PIC16LF1518 | R | R | R | Y | Y | R | R | | | R | R | R | Y | Y | G | R | Y | Y | Y | Y |
| PIC16F1519 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | G | R | G | G | G | G |
| PIC16LF1519 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | G | R | G | G | G | G |
| PIC16F1526 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | Y | R | G | G | G | G |
| PIC16LF1526 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | Y | R | G | G | G | G |
| PIC16F1527 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | Y | R | G | G | G | G |
| PIC16LF1527 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | G | R | G | G | G | G |
| PIC16F1782 | R | R | R | R | Y | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC16F1783 | R | R | R | R | Y | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC16LF1782 | R | R | R | R | Y | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC16LF1783 | R | R | R | R | Y | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC16F1823 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1823 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1824 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1824 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1825 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1825 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1826 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1826 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1827 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1827 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1828 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1828 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | Y |
| PIC16F1829 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1829 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1847 | R | R | R | Y | Y | R | R | | | R | R | R | Y | Y | G | R | Y | Y | Y | Y |
| PIC16LF1847 | R | R | R | Y | Y | R | R | | | R | R | R | Y | Y | G | R | Y | Y | Y | Y |
| PIC16LF1902 | R | R | R | G | Y | R | R | | | R | R | R | R | G | G | R | R | G | R | G |
| PIC16LF1903 | R | R | R | G | Y | R | R | | | R | R | R | R | G | G | Y | R | G | R | G |
| PIC16LF1904 | R | R | R | R | Y | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC16LF1906 | R | R | R | R | Y | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC16LF1907 | R | R | R | R | Y | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC16F1933 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1933 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1934 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1934 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1936 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1936 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1937 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1937 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1938 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1938 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1939 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1939 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1946 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1946 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16F1947 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC16LF1947 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC17C42 | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17CR42 | R | R | G | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17C42A | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17C43 | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17CR43 | R | R | G | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17C44 | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17C752 | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17C756 | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17C756A | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17C762 | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC17C766 | R | G | G | G | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| PIC18C242 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F1220 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F1320 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F1330 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F1230 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F13K22 | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F14K22 | R | R | R | G | G | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC18LF13K22 | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF14K22 | R | R | R | G | G | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC18F13K50 | R | R | R | G | Y | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC18F14K50 | R | R | R | G | Y | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC18LF13K50 | R | R | R | G | Y | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC18LF14K50 | R | R | R | G | Y | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC18F2220 | R | G | G | G | G | G | G | | PCM18XH0(G) | | PCM18XH2(G) | | PCM18XH3(G) |
| | PMF18WC0(G) | | PMF18WC1(G) | | PMF18WC2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2221 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2320 | R | G | G | G | G | G | G | | PCM18XH0(G) | | PCM18XH2(G) | | PCM18XH3(G) |
| | PMF18WC0(G) | | PMF18WC1(G) | | PMF18WC2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F23K20 | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F2321 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2331 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2410 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2450 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F242 | R | G | G | G | G | G | G | | PCM18XC1(G) | | PCM18XH0(G) | | PCM18XH2(G) | | PCM18XH3(G) |
| | PMF18WC0(G) | | PMF18WC1(G) | | PMF18WC2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2420 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F24K20 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2423 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2431 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2439 | R | R | G | R | R | G | G | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F2455 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2458 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F248 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2480 | R | G | G | G | G | G | G | | | PMF18WJ0(G) | | PMF18WJ1(G) | | PMF18WT0(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F24J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF24J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | R | R | G | G | G | G |
| PIC18F2510 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2515 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2520 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F25K20 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F46K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF46K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F26K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF26K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F44K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF44K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F43K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF43K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F24K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF24K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F23K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF23K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F25K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF25K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F2523 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2525 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18C252 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F252 | R | G | G | G | G | G | G | | PCM18XC1(G) | | PCM18XH0(G) | | PCM18XH2(G) | | PCM18XH3(G) |
| | PMF18WC0(G) | | PMF18WC1(G) | | PMF18WC2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2539 | R | R | G | R | R | G | G | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F2550 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2553 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F258 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2580 | R | G | G | G | G | G | G | | | PMF18WJ0(G) | | PMF18WJ1(G) | | PMF18WT0(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2585 | R | G | G | G | G | G | G | | | PMF18WJ0(G) | | PMF18WT0(G) | | PMF18WJ1(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F25J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF25J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | R | R | G | G | G | G |
| PIC18F2610 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2620 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F26K20 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2680 | R | G | G | G | G | G | G | | | PMF18WJ0(G) | | PMF18WT0(G) | | PMF18WJ1(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2682 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F2685 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4220 | R | G | G | G | G | G | G | | PCM18XH0(G) | | PCM18XH2(G) | | PCM18XH3(G) |
| | PMF18WC0(G) | | PMF18WC1(G) | | PMF18WC2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4221 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F43K20 | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F4331 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4320 | R | G | G | G | G | G | G | | PCM18XH0(G) | | PCM18XH2(G) | | PCM18XH3(G) |
| | PMF18WC0(G) | | PMF18WC1(G) | | PMF18WC2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4321 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4410 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4450 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18C442 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F442 | R | G | G | G | G | G | G | | PCM18XC1(G) | | PCM18XH0(G) | | PCM18XH2(G) | | PCM18XH3(G) |
| | PMF18WC0(G) | | PMF18WC1(G) | | PMF18WC2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4420 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F44K20 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4423 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4431 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4439 | R | R | G | R | R | G | G | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F4455 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4458 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F448 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4480 | R | G | G | G | G | G | G | | | PMF18WJ0(G) | | PMF18WJ1(G) | | PMF18WT0(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F44J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF44J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | R | R | G | G | G | G |
| PIC18C452 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F4510 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F45J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF45J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | R | R | G | G | G | G |
| PIC18F4515 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4520 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F45K20 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F45K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF45K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F4523 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F452 | R | G | G | G | G | G | G | | PCM18XC1(G) | | PCM18XH0(G) | | PCM18XH2(G) | | PCM18XH3(G) |
| | PMF18WC0(G) | | PMF18WC1(G) | | PMF18WC2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4525 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4539 | R | R | G | R | R | G | G | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F4550 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4553 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F458 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4580 | R | G | G | G | G | G | G | | | PMF18WJ0(G) | | PMF18WJ1(G) | | PMF18WT0(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4585 | R | G | G | G | G | G | G | | | PMF18WJ0(G) | | PMF18WT0(G) | | PMF18WJ1(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4610 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4620 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F46K20 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4680 | R | G | G | G | G | G | G | | | PMF18WJ0(G) | | PMF18WT0(G) | | PMF18WJ1(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4682 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F4685 | R | G | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18C601 | R | R | G | G | G | G | G | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F6310 | R | R | G | G | G | G | G | | PCM18XQ0(G) | | PCM18XQ1(G) | | PCM18XQ2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6390 | R | R | G | G | G | G | G | | PCM18XQ0(G) | | PCM18XQ1(G) | | PCM18XQ2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6393 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6410 | R | R | G | G | G | G | G | | PCM18XQ0(G) | | PCM18XQ1(G) | | PCM18XQ2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6490 | R | R | G | G | G | G | G | | PCM18XQ0(G) | | PCM18XQ1(G) | | PCM18XQ2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6493 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6520 | R | R | G | G | G | G | G | | | PMF18WA0(G) | | PMF18WA1(G) | | PMF18WA2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6527 | R | R | G | G | G | G | G | | PCM18XS0(G) | | PCM18XS1(G) | | PCM18XS2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18C658 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F6525 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6585 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F65J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F65J15 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F65J50 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6620 | R | G | G | G | G | G | G | | | PMF18WA0(G) | | PMF18WA1(G) | | PMF18WA2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6621 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6622 | R | R | G | G | G | G | G | | PCM18XS0(G) | | PCM18XS1(G) | | PCM18XS2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6627 | R | R | G | G | G | G | G | | PCM18XS0(G) | | PCM18XS1(G) | | PCM18XS2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6628 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6680 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J15 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J16 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J50 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J55 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J65 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F67J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F67J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J60 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F67J50 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F67J60 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6720 | R | G | G | G | G | G | G | | | PMF18WA0(G) | | PMF18WA1(G) | | PMF18WA2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6722 | R | R | G | G | G | G | G | | PCM18XS0(G) | | PCM18XS1(G) | | PCM18XS2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F6723 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18C801 | R | R | G | G | G | G | G | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F8310 | R | R | G | G | G | G | G | | PCM18XQ0(G) | | PCM18XQ1(G) | | PCM18XQ2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8390 | R | R | G | G | G | G | G | | PCM18XQ0(G) | | PCM18XQ1(G) | | PCM18XQ2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8393 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8410 | R | R | G | G | G | G | G | | PCM18XQ0(G) | | PCM18XQ1(G) | | PCM18XQ2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8490 | R | R | G | G | G | G | G | | PCM18XQ0(G) | | PCM18XQ1(G) | | PCM18XQ2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8493 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18C858 | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC18F8520 | R | R | G | G | G | G | G | | | PMF18WA0(G) | | PMF18WA1(G) | | PMF18WA2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8525 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8527 | R | R | G | G | G | G | G | | PCM18XS0(G) | | PCM18XS1(G) | | PCM18XS2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8585 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F85J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F85J15 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F85J50 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8620 | R | G | G | G | G | G | G | | | PMF18WA0(G) | | PMF18WA1(G) | | PMF18WA2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8621 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8622 | R | R | G | G | G | G | G | | PCM18XS0(G) | | PCM18XS1(G) | | PCM18XS2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8627 | R | R | G | G | G | G | G | | PCM18XS0(G) | | PCM18XS1(G) | | PCM18XS2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8628 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8680 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J15 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J16 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J50 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J55 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J60 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J65 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8720 | R | G | G | G | G | G | G | | | PMF18WA0(G) | | PMF18WA1(G) | | PMF18WA2(G) |
| G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8722 | R | R | G | G | G | G | G | | PCM18XS0(G) | | PCM18XS1(G) | | PCM18XS2(G) |
| | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F8723 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F87J10 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F87J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F67K90 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F66K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F46K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F26K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F65K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F45K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F25K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF25K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF26K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF45K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF46K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF65K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF66K80 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F66K90 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F65K90 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F86K90 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F85K90 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F67K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F65K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F66K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F87K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F86K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F85K22 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F87J50 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F87J60 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F87K90 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F96J65 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F96J60 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F97J60 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F63J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F64J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F65J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F63J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F64J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F65J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F83J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F84J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F85J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F83J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F84J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F85J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F67J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F86J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F87J90 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F66J93 | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F67J93 | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F86J93 | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F87J93 | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F86J72 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F87J72 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F46J50 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F46J11 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F26J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F26J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F45J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F44J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F25J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F24J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F45J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F44J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F25J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F24J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF46J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF46J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF26J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF26J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF45J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF44J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF25J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF24J50 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF45J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF44J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF25J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18LF24J11 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC18F47J53 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F46J53 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F27J53 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F26J53 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F47J13 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F46J13 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F27J13 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18F26J13 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF47J53 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF46J53 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF27J53 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF26J53 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF47J13 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF46J13 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF27J13 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC18LF26J13 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC30F2010 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F2010e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F2011 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F2011e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F2012 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F2012e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F1010 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F2020 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F2023 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F3010 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F3010e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F3011 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F3011e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F3012 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F3012e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F3013 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F3013e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F3014 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F3014e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F4011 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F4011e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F4012 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F4012e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F4013 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F4013e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F5011 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F5011e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F5013 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F5013e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F5015 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F5015e | R | R | R | R | G | R | R | | | R | R | R | R | R | Y | Y | R | R | R | R |
| dsPIC30F5016 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F6010 | R | R | G | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC30F6010A | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F6011 | R | R | G | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC30F6011A | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F6012 | R | R | G | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC30F6012A | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F6013 | R | R | G | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC30F6013A | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F6014 | R | R | G | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC30F6014A | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC30F6015 | R | R | G | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| rfPIC12C509AF | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| rfPIC12C509AG | R | G | G | G | G | R | R | | | R | R | R | R | R | G | G | R | R | R | R |
| rfPIC12F675F | R | R | G | G | G | R | G | | | R | R | R | R | R | G | G | R | R | R | R |
| rfPIC12F675H | R | R | G | G | G | R | G | | | R | R | R | R | R | G | G | R | R | R | R |
| rfPIC12F675K | R | R | G | G | G | R | G | | | R | R | R | R | R | G | G | R | R | R | R |
| PIC24F16KA102 | R | R | R | G | Y | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC24F16KA101 | R | R | R | G | Y | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC24F08KA102 | R | R | R | G | Y | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC24F08KA101 | R | R | R | G | Y | G | G | | | Y | Y | R | G | G | G | G | G | G | G | G |
| PIC24F04KA201 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24F04KA200 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FV32KA304 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FV32KA302 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FV32KA301 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FV16KA304 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FV16KA302 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FV16KA301 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24F32KA304 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24F32KA302 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24F32KA301 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24F16KA304 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24F16KA302 | R | R | R | R | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24F16KA301 | R | R | R | Y | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ128DA106 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ256DA106 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ128DA110 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ256DA110 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ128DA206 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ256DA206 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ128DA210 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ256DA210 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ256GB110 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ256GB108 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ256GB106 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ192GB110 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ192GB108 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ192GB106 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GB110 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GB108 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GB106 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GB110 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GB108 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GB106 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GB206 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ256GB206 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GB210 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ256GB210 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ256GA110 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ256GA108 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ256GA106 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ192GA110 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ192GA108 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ192GA106 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GA110 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GA108 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GA106 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GA310 | R | R | R | R | Y | R | R | | | R | R | R | Y | Y | Y | Y | Y | Y | Y | Y |
| PIC24FJ128GA308 | R | R | R | R | Y | R | R | | | R | R | R | Y | Y | G | G | Y | Y | Y | Y |
| PIC24FJ128GA306 | R | R | R | R | Y | R | R | | | R | R | R | Y | Y | G | G | Y | Y | Y | Y |
| PIC24FJ64GA310 | R | R | R | R | Y | R | R | | | R | R | R | Y | Y | G | G | Y | Y | Y | Y |
| PIC24FJ64GA308 | R | R | R | R | Y | R | R | | | R | R | R | Y | Y | G | G | Y | Y | Y | Y |
| PIC24FJ64GA306 | R | R | R | R | Y | R | R | | | R | R | R | Y | Y | G | G | Y | Y | Y | Y |
| PIC24FJ64GA110 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA108 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA106 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA006 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA008 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA010 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ96GA006 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ96GA008 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ96GA010 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GA006 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GA008 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ128GA010 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ32GP204 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ32GP202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ16GP304 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ12GP202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ12GP201 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP206 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP206A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP306 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP306A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP310 | R | R | R | G | G | G | G | | | G | G | G | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP310A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP706 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP706A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP708 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP708A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP710 | R | R | R | G | G | G | G | | | G | G | G | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP710A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP206 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP206A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP306 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP306A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP310 | R | R | R | G | G | G | G | | | G | G | G | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP310A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP706 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP706A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP708 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP708A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP710 | R | R | R | G | G | G | G | | | G | G | G | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP710A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ256GP506 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ256GP506A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ256GP510 | R | R | R | G | G | G | G | | | G | G | G | G | G | G | G | G | G | G | G |
| dsPIC33FJ256GP510A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ256GP710 | R | R | R | G | G | G | G | | | G | G | G | G | G | G | G | G | G | G | G |
| dsPIC33FJ256GP710A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC506 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC506A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC508 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC508A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC510 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC510A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC706 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC706A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC710 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC710A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC506A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC506 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC510 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC510A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC706 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC706A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC708 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC708A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC710 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC710A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ256MC510 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ256MC510A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ256MC710 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ256MC710A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ16GA002 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ16GA004 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ32GA002 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ32GA004 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ48GA002 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ48GA004 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA002 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA004 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24FJ32GA102 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ32GA104 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA102 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GA104 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ32GB002 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ32GB004 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GB002 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24FJ64GB004 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP206 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP206A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP210 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP210A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ256GP206 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ256GP206A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ256GP610 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ256GP610A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP506 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP506A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP510 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP510A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP206 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP206A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP210 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP210A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP306 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP306A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP310 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP310A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP506 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP506A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP510 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP510A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ256GP210 | R | R | R | G | G | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ256GP210A | R | R | R | G | G | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP504 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP502 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP204 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ128GP202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP504 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP502 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP204 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ64GP202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ32GP304 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| PIC24HJ32GP302 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32GP204 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ32GP202 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ32MC204 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ32MC202 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ16GP304 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ16MC304 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP804 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP802 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP204 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128GP202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP804 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP802 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP204 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GP202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32GP304 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32GP302 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC804 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC802 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC204 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ128MC202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC804 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC802 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC204 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64MC202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32MC304 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32MC302 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ12GP202 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ12GP201 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ12MC202 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ12MC201 | R | R | R | G | G | G | G | | | G | G | Y | G | G | G | G | G | G | G | G |
| dsPIC33FJ06GS101 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ06GS102 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ06GS202 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ16GS402 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ16GS404 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ16GS502 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ16GS504 | R | R | R | G | Y | G | G | | | G | G | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32GS406 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GS406 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32GS606 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GS606 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32GS608 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GS608 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ32GS610 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ64GS610 | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| dsPIC33FJ16GP101 | R | R | R | R | Y | R | R | | | R | R | R | R | R | R | R | R | R | R | R |
| dsPIC33FJ16MC101 | R | R | R | R | Y | R | R | | | R | R | R | R | R | R | R | R | R | R | R |
| dsPIC33FJ16GP102 | R | R | R | R | Y | R | R | | | R | R | R | R | R | R | R | R | R | R | R |
| dsPIC33FJ16MC102 | R | R | R | R | Y | R | R | | | R | R | R | R | R | R | R | R | R | R | R |
| PIC24FJ16MC101 | R | R | R | R | Y | R | R | | | R | R | R | R | R | R | R | R | R | R | R |
| PIC24FJ16MC102 | R | R | R | R | Y | R | R | | | R | R | R | R | R | R | R | R | R | R | R |
| PIC32MX320F032H | R | R | R | G | Y | G | G | | | R | R | G | G | G | G | G | G | G | G | G |
| PIC32MX320F064H | R | R | R | G | Y | G | G | | | R | R | G | G | G | G | G | G | G | G | G |
| PIC32MX320F128H | R | R | R | G | Y | G | G | | | R | R | G | G | G | G | G | G | G | G | G |
| PIC32MX340F128H | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX340F128L | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX340F256H | R | R | R | G | Y | G | G | | | R | R | G | G | G | G | G | G | G | G | G |
| PIC32MX340F512H | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX320F128L | R | R | R | G | Y | G | G | | | R | R | G | G | G | G | G | G | G | G | G |
| PIC32MX360F256L | R | R | R | G | Y | G | G | | | R | R | G | G | G | G | G | G | G | G | G |
| PIC32MX360F512L | R | R | R | G | Y | G | G | | | R | R | G | G | G | G | G | G | G | G | G |
| PIC32MX420F032H | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX440F128H | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX440F256H | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX440F512H | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX440F128L | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX460F256L | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX460F512L | R | R | R | G | Y | G | G | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX534F064L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX534F064H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX564F064L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX564F064H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX564F128L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX564F128H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX575F256L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX575F256H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX575F512L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX575F512H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX664F064L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX664F064H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX664F128L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX664F128H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX675F256L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX675F256H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX675F512L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX675F512H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX695F512L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX695F512H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX764F128L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX764F128H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX775F256L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX775F256H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX775F512L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX775F512H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX795F512L | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
| PIC32MX795F512H | R | R | R | G | Y | R | R | | | R | R | R | G | G | G | G | G | G | G | G |
|
|
| |
|
Thông Số Kỹ Thuật |
|
|
PICKit 3 Edition & PICKit 3 Microchip |
|
PICKit 3 Edition |
PICKit 3 Microchip |
| Đặc Điểm Chung |
| Board |
RF4 2 lớp - dày 1.0 mm - xanh dương - linh kiện bố trí trên 1 mặt PCB |
RF4 4 lớp - dày 1.6 mm - đỏ - linh kiện bố trí trên 2 mặt PCB |
| Kích thước |
58 x 58 x 22 mm (L x W x H) |
90 x 39 x 11 mm (L x W x H) |
| ICSP 6-pin |
Female & Male |
Female |
| Schematic |
(Cập nhật sau) |
(Cập nhật sau) |
| Linh Kiện Lắp Ráp |
| U1-PIC24F |
PIC24FJ256GB106 - I/MR |
PIC24FJ256GB106 - I/PT |
| U3-Serial Eeprom |
Serial Eeprom - I/ST (6.4 x 3.0 mm) |
Serial Eeprom - I/SN (7.9 x 5.2 mm) |
| U4-Code Image |
Code Image - I/SN (7.9 x 5.2 mm) |
Code Image - I/SN (7.9 x 5.2 mm) |
| U5-MCP601 |
MCP601RT - I/OT |
MCP601RT - I/OT |
| U6-FDC6420C |
FDC6420C - SuperSOT6 |
FDC6420C - SuperSOT6 |
| U8,U9,U11-74LVC1T45 |
74LVC1T45 - DBV |
74LVC1T45 - DBV |
| U7-MCP1727 |
MCP1727-3302 - E/MF |
MCP1727-3302 - E/MF |
| U10-MCP1525 |
MCP1525T-I/TT |
MCP1525T-I/TT |
| U12-74AHC1G125 |
74HCT1G125 - SOT23 |
74AHC1G125 - SOT23 |
| Y1-12MHz |
12MHz SMD 4-pin (5.0x3.2mm) |
12MHz SMD 4-pin (12.0x5.0mm) |
| D1-ZHCS1000 |
ZHCS1000TA - SOT23 |
ZHCS1000TA - SOT23 |
| D2-Power Led |
White Led - 0805 |
Green Led - 0805 |
| D4-Status Led |
Red+Yellow Led - 0805 |
Bi-color Led - 0805 |
| D5-Active Led |
Blue Led - 0805 |
Blue Led - 0805 |
| D3-BAT54 |
BAT54 - SOT23 |
BAT54 - SOT23 |
| D8-MBR0520L |
MBR0520L - SOT23 |
MBR0520L - SOT23 |
| L1-Inductor |
470uH - SMD |
680uH - SMD |
| Q1-Fet |
Fet - SOT23 |
Fet - SOT23 |
| Q2,Q3,Q5,Q7-MMBT3904 |
ULN2003 - TSSOP16 |
MMBT3904 - SOT23 |
| Q6-ZXTP25020 |
ZXTP25020DG - SOT223 |
ZXTP25020CFH - SOT23 |
| Q6-MMBT3906 |
MMBT3906 - SOT23 |
MMBT3906 - SOT23 |
| TR1,TR2,TR3-Zenner |
5.1v - 0805 |
5.0v - 1206 |
R1,R6,R8,R9,R10
R12,R13,R15,R21,R27
R32,R38,R56,R57,R47 |
10k - 0603 |
10k - 0603 |
R2,R5,R24,R31,R46
R29,R30,R44,R51,R52 |
330 - 0603 |
330 - 0603 |
R3,R4,R19 |
200k - 0805 |
200k - 0603 |
| R7,R18,R54,R58 |
1k - 0603 |
1k - 0603 |
| R14,R17 |
2.7k - 0805 |
2.7k - 0603 |
| R20 |
3.9k - 0805 |
3.9k - 0603 |
| R22,R33,R34,R55 |
2.2k - 0603 |
2.2k - 0603 |
| R40,R41 |
2.00k 1% - 0805 |
2.00k 1% - 0603 |
| R16,R26,R42,R43,R45 |
100 - 0603 |
100 - 0603 |
| R36,R49,R50 |
4.7k - 0603 |
4.7k - 0603 |
| R37 |
100k - 0603 |
100k - 0603 |
| R48 |
39 - 0603 |
33 - 0603 |
| R53 |
470 - 0805 |
470 - 0603 |
| R59,R60 |
0 - 0603 |
0 - 0603 |
| C1 |
10uF - 0805 |
10uF - 0805 |
| C2,C27 |
1uF - 1206 |
1uF - 0603 |
C3,C8,C12,C13,C14
C19,C20,C21,C24,C25
C26,C28,C29,C30,C34 |
0.1uF - 0603 |
0.1uF - 0603 |
| C4,C5 |
|
27pF - 0603 |
| C10,C11,C18 |
10uF/16v - 1206 |
10uF/16v - 1206 |
| C15 |
2.2uF - 0805 |
2.2uF - 0603 |
| C17 |
0.01uF - 0603 |
0.01uF - 0603 |
| C23 |
47uF/20v |
2 x 47uF/16v |
| C31,C32,C33 |
|
0.1uF - 0603 |
| PTC1 |
Fuse 500mA |
Fuse 500mA SMD |
| PTC2,PTC3,PTC4 |
0R - 0603 |
Fuse 50mA SMD |
|
|
|
Một Số Lưu Ý Khi Sử Dụng |
|
Thông báo lỗi thường gặp |
- PK3Err0045: You must connect to a target device to use PICkit 3.
- Nguyên nhân : PICKit 3 không kiểm tra được nguồn đang cung cấp cho Chip, mặc dù Chip đã có nguồn ngoài.
- Cách khắc phục : Đảm bảo Vdd và GND trên cáp bus 6-pin phải được nối giữa PICKit 3 và Chip. Trong trường hợp Chip không có nguồn ngoài, hãy cấp nguồn cho Chip lấy từ PICKit 3 thông qua menu Programmer/Debugger -> Power -> Power target circuit form PICkit 3 -> OK.
|
|
facebook/pduytech
|
